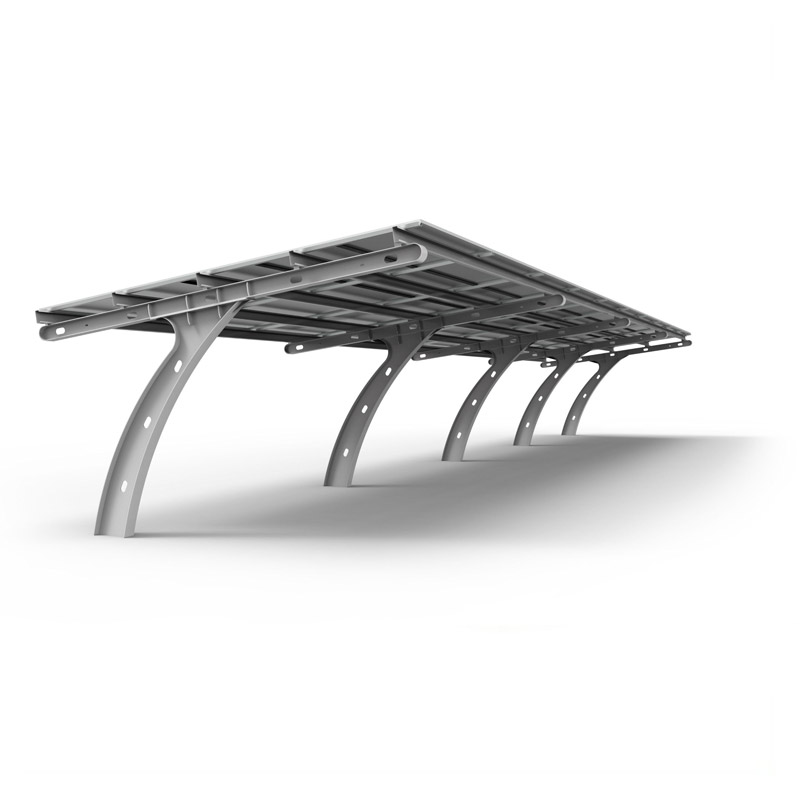

Solar Photovoltaic Waterproof Parking Structure Photovoltaic Carport Installation System Solar Carport Solar Structure

Name: Solar Photovoltaic Waterproof Parking Structure Photovoltaic Carport Installation System Solar Carport Solar Structure
Brand: JJ PV SOLAR LIMITED
Price: 580.0 USD
Availability: InStock

Price 580.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Solar Photovoltaic Waterproof Parking Structure Photovoltaic Carport Installation System Solar Carport Solar Structure Specification

Overheating Protection
Yes (via inverter protection circuitry)

Feature
Waterproof, shading, integrated rainwater gutter, high load capacity

Connector Type
MC4 (PV), screw/bolt (structure)

Power Factor
>=0.98 (system dependent, at output)

IP Rating
IP65 (junction boxes/inverter components)

Surface Finish
Hot-dip galvanized / anodized aluminum

Humidity %
0-100% (non-condensing)

Shape
Rectangular / Customizable canopy design

Operating Temperature
-40C to +85C

Insulation Material
Weather-resistant insulation for electrical; rubber/EPDM for joints

Mounting Type
On-ground (fixed footings/concrete foundation)

Efficiency
16%-21% (PV module dependent)

Product Type
Solar Photovoltaic Carport Structure

Application
Car parking shading, solar power generation

Protection Level
Corrosion-resistant, weatherproof, anti-UV

Frequency (MHz)
NA (not applicable for PV structures)

Rated Voltage
1000 V DC (PV array); 230/400 V AC output

Energy Consumption
Self-generating; no intrinsic consumption

Output Type
DC (module output); AC (via inverter)

Color
Silver, customizable (powder coated/painted)

Dimension (L*W*H)
Customizable (e.g., 5500 mm x 2200 mm x 3000 mm per bay)

Weight
Variable (customizable based on design and size)

Phase
Three phase (for integrated PV systems)

Size
Customizable size to fit vehicle type and capacity

Input Voltage
1000 V DC max (PV modules)

Connection Type
Bolted connections, modular assembly

Material
High-strength galvanized steel / Aluminum alloy

No Of Poles
2-4 (depending on layout and capacity)

Fire Rating
Class A roof assembly (PV panel dependent)

Anti-theft Protection
Tamper-resistant bolts and locks

Fastener Material
Stainless steel (SS304/SS316 grade)

Module Mounting Angle
5-20 (customizable for latitude)

Expansion Capability
Modular and extendable design

Maintenance Requirement
Minimal, periodic cleaning & inspection

Foundation Type
Concrete foundation / pre-cast footings

Panel Orientation
Landscape or portrait, site-optimized

Max Vehicle Height
Up to 2.5 m (customizable for larger vehicles)

Wind Load Resistance
Up to 45 m/s (customizable as per site)

PV Panel Compatibility
Mono/poly crystalline, bifacial PV modules

Drainage System
Integrated water gutter and downpipe system

Environmental Compliance
RoHS, ISO 9001, IEC certified

Snow Load Capacity
Up to 1.5 kN/m2 or higher

Solar Photovoltaic Waterproof Parking Structure Photovoltaic Carport Installation System Solar Carport Solar Structure Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

About Solar Photovoltaic Waterproof Parking Structure Photovoltaic Carport Installation System Solar Carport Solar Structure

Jump on the latest in solar innovation with our Top-drawer Solar Photovoltaic Waterproof Parking Structure-an illustrious carport solution engineered for both functionality and aesthetics. This spectacular structure boasts wind load resistance up to 45 m/s and snow load capacity exceeding 1.5 kN/m2, making it robust for any climate. Its modular architecture ensures easy expansion, while the integrated drainage and tamper-resistant design provide ultimate durability and security. Compatible with all major PV modules, this high-grade, corrosion-resistant marvel guarantees minimal maintenance and top-tier performance for years to come. Reduced energy expenses and enhanced site value await-seize the ultimate solar upgrade today!

Versatile Application, Superior Features

The Solar Photovoltaic Waterproof Parking Structure is ideal for specific uses like car parking shading and solar power generation, making it highly adaptable for both commercial and residential settings. Constructed from high-strength galvanized steel or anodized aluminum, it is engineered for outdoor longevity and all-weather performance. The use type includes on-ground installations with modular, bolted assembly, ensuring flexibility and rapid deployment-making it a smart choice for any facility looking to merge sustainability and protection.

FOB Port, Sample Policy & Rate Clarity

Handover of the Solar Carport is managed swiftly through designated FOB ports across India, with competitive rate offerings tailored to your needs. We support informed expenditure decisions by making samples available under a transparent sample policy-helping you assess design, build quality, and suitability before finalizing your investment. This customer-centric approach ensures that your procurement process is seamless, minimizing risk and maximizing value throughout the transaction lifecycle.

FAQ's of Solar Photovoltaic Waterproof Parking Structure Photovoltaic Carport Installation System Solar Carport Solar Structure:

Q: How does the installation process work for the Solar Photovoltaic Carport System?

A: Installation is streamlined with modular, bolted connections, allowing rapid and secure assembly. The system can be customized for site-specific requirements and handled by professional installers for optimal performance.

Q: What materials are used in the construction of this solar carport?

A: The structure utilizes high-strength galvanized steel or anodized aluminum alloys, both finished for superior corrosion resistance, ensuring long-term durability in diverse weather conditions.

Q: When should periodic maintenance be performed on the carport?

A: Minimal maintenance is required, mainly periodic cleaning of panels and inspections of fasteners and electrical components to maintain optimal efficiency and safety.

Q: Where can this carport system be installed, and is the design flexible?

A: This carport is ideal for commercial parking lots, residential complexes, and institutional areas, with customizable dimensions and layout to fit various vehicle types and site shapes.

Q: What are the key benefits of choosing this waterproof solar carport?

A: Major benefits include energy self-generation, vehicle shading, integrated rainwater drainage, high load and fire resistance, tamper-proof security, and compliance with leading global certifications like RoHS, ISO, and IEC.

Q: How does this system ensure protection against theft and harsh weather?

A: The system uses tamper-resistant bolts, locks, and high-grade weatherproof materials, complemented by IP65-rated electrical components for comprehensive security and durability.
